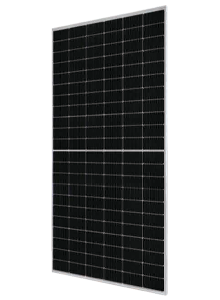

JA Solar Integrated 505W Mono PERC Half-Cell MBB Silver Frame TS MC4 Connectors

JA Solar Integrated 505W Mono PERC Half-Cell MBB Silver Frame TS MC4 Connectors

In Stock
ZK2,400.00 Original price was: ZK2,400.00.ZK2,300.00Current price is: ZK2,300.00.
In Stock
wws Need Help? Contact Us via WhatsApp
Add to wishlist Compare
Order on WhatsApp
Other people want this. 500 people have this in their carts right now.
Category: Brand:

JA Solar Integrated 505W Mono PERC Half-Cell MBB Silver Frame TS MC4 ConnectorsPart No: JAM66S-30-505-MR-TS-MC4 Panels – Monocrystallines

  • Rating: 505W
  • Efficiency: 21.3%
  • Width: 1,134mm
  • Height: 2,093mm
  • Price per Watt: (R3,041/Wp)

Product Features:

  • Higher output power (505W).
  • Lower levelized cost of energy (LCOE).
  • Better shading tolerance.
  • Enhanced tolerance for mechanical loading.
  • 15-year product warranty and 25-year linear power output warranty.

Comes supplied with staubli MC4 connectors.

Due to size of the panels and size of the gap between the slats of the pallets (both length and width entries) a fork lift truck on site is required to offload these modules. In Germany, this module may only be installed on building-independent solar systems in publicly inaccessible areas with a height of up to 3m.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Laes Limited will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Description

If you have any technical queries about this product or wish to report any issues with the information on this page then please use the Contact Form to contact us.
Supplier Part No: JAM66S30-505/MR
Weight: 26.3 kg
Rated Power: 505 W
MCS Reference: BABT 8515-219-505W
Length: 2,093 mm
Width: 1,134 mm
Depth: 30 mm
VMPP: 38.53 V
IMPP: 13.11 A
Isc: 14 A
Voc: 45.72 V
Temp. Coefficient (Mpp): -0.35 %
Clamp position on panel: Long and short side
Connector Type:MC4
Efficiency: 21.3 %
Pallet Size: Oversized
