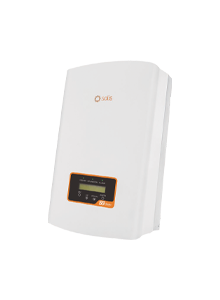

Solis (SOL-3.6-S6-DT-DC)

Solis (SOL-3.6-S6-DT-DC)

In Stock
ZK11,600.00
In Stock
wws Need Help? Contact Us via WhatsApp
Add to wishlist Compare
Order on WhatsApp
Other people want this. 221 people have this in their carts right now.
Categories: , Brand:

Part No: SOL-3.6-S6-DT-DC Inverters – Main Units

  • Rating: 3,600W
  • Phases: 1

Solis Series 6 is the latest generation of grid-tied residential inverters from Solis. This range of inverters are leaders in affordable small residential rooftop installations.

Product Features

  • Max PV Power of 5.4kW
  • Maximum string input current 14A
  • DRM (Demand Response Mode) integrated and backflow power control function for smart grid requirements.
  • Super high frequency switching technology with Max. Efficiency over 97.3% and      European efficiency over 96.6%
  • Wide input voltage range – Ultra low start-up voltage of 120V and max PV input voltage of 600V
  • Dual MPPT design with precise MPPT algorithm
  • Export Limitation built in – Requires CT clamp (sold separately)
  • Integrated AFCI (DC arc-fault circuit protection)
  • Integrated DC switch for safe PV maintenance
  • Rated IP66
  • 5-year standard warranty

NRS-097-2-1 Certified

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards.

Important

Please note that this inverter does not include a data logger or CT. For one inverter deployment, use CT “SOL-CT-100A-10M” For more than one inverter deployment, use EPM1 EPM1 or the CT requires a separate data logger. These items are sold separately.

Description

If you have any technical queries about this product or wish to report any issues with the information on this page then please use the Contact Form to contact us.
Supplier Part No:
S6-GR1P3.6K-DC
Weight:
13.51 kg
Rated Power:
3,600 W
Min PPT Voltage:
90 V
Max PPT Voltage:
520 V
DC Startup Voltage:
120 V
DC Shutdown Voltage:
90 V
Max Input Voltage:
600 V
Max DC Power:
5,400 W
Max AC Power (5 Minutes):
4,000 W
Surge AC Power (1 Second):
4,000 W
Max DC Current:
28 A
Max DC Inputs:
2
Has DC Fuses:
0
Connector:
MC4
Included Connectors:
4
Euro Efficiency:
96.6 %
Transformer:
None
MPPT Quantity :
2
Has Integrated DC Switch:
Yes
Warranty:
5 years
